Feed Pellet Mill Animal Feed Pelletizer

  • Feed Pellet Mill Animal Feed Pelletizer

Short Description:

Feed pellet mill is suitable for various animal feeds production.


Product Detail

Production Case

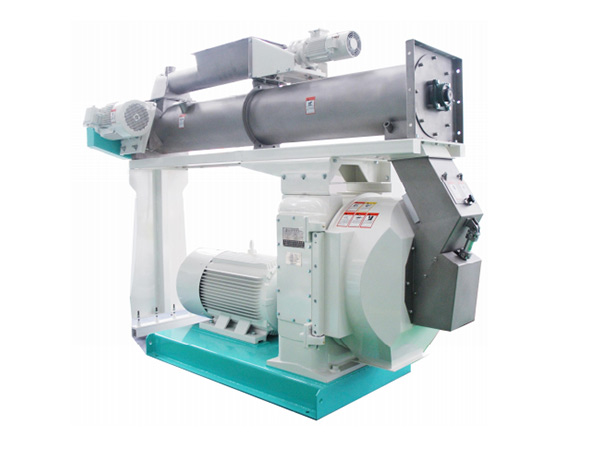

  Feed Pellet Mill

  The SZLH contains a feeder, conditioner and retentioner in one modular system, offering you modern conditioning technology. Excellent feed hygiene, reduction of start-up time and productivity increase are only some of the benefits of this new system.

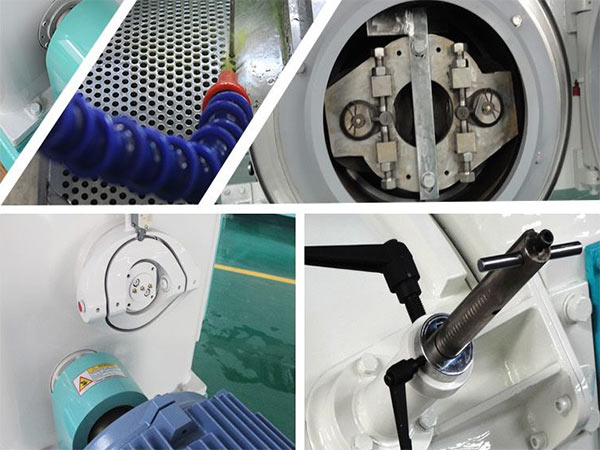

  Feed pellet mill has stainless steel feeding spiral conveyor, tempering device and particle pressing chamber. It also has advanced and reliable overload protection device, frequency control device and high quality temperature sensor.

  Feed pellet mill is suitable for various animal feeds production.

  We can match multi-layer tempering device and biax differential modulator according to different feeds requirements.

  Transmission adopts dual-motor belt drive with stable performance and low noise.

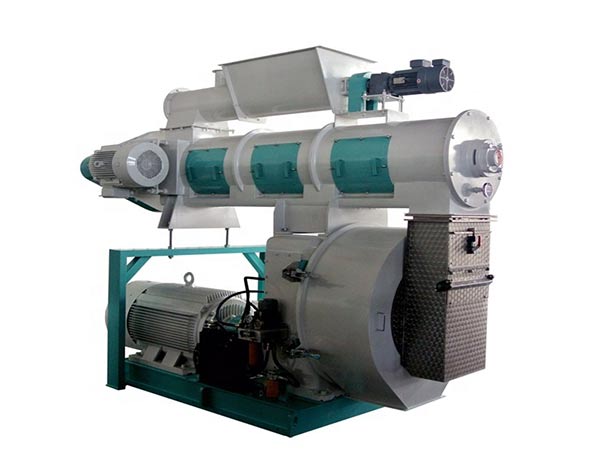

 Feed Pellet Mill



  Main Parameter



SZLH 400b

SZLH 420b

SZLH 420E

SZLH 508b

SZLH 508E

SZLH 520

Capacity(t/h)



3-12

3-14

3-16

4-20

4.8-24

4.8-24

Die inner diameter(mm)



φ400

φ420

φ420

φ508

φ508

φ520

Die effective widthP(mm)



120

120

140

155

185

185

Pellet size(mm)



φ2-φ10

φ2-φ10

φ2-φ10

φ2-φ10

φ2-φ10

φ2-φ10

No. of compression roller (pcs)



2

2

2

2

2

2

OD of compression roller(mm)



φ 190

φ206

φ206

φ222

φ222

φ255

Particle forming rate %

≥95

≥95

≥95

≥95

≥95

≥95

percentage of powdered pellets %

≤10

≤10

≤10

≤10

≤10

≤10
