Rotary Classifying Screen

  • Rotary Classifying Screen

Short Description:

Rotary Classifying Screen is easy to change the screen. The tail support is flexible support, which can reduce noises and improve classifying performance.


Product Detail

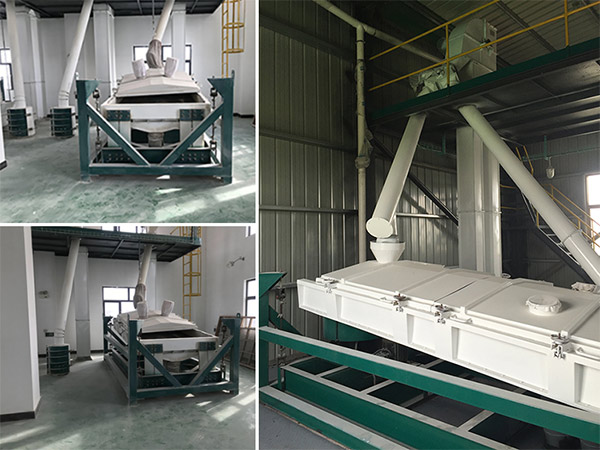

Production Case


Rotary classifying screen
It has features of low malfunction rate, less maintenance cost and easy operation.
Rotary Classifying Screen is easy to change the screen. The tail support is flexible support, which can reduce noises and improve classifying performance.

Slope surface shape of sieve bottom avoids material sedimentation and reduces cross contamination.
We can customize various machine types, such as two-layer screen, three-layer screen and double feed port.
Rotary Classifying Screen is widely used in powdery material or pellet feed screening and classifying.



Model

Power(KW)

Capacity(t/h)

granule

flour

 SFJH80×2C

1.5

5-8

3-5

 SFJH100×2C

2.2

8-10

6-8

 SFJH110×2C

3

10-12

7-10

 SFJH125×2C

4

12-15

8-12

 SFJH130×2C

4

12-16

10-14

 SFJH150×2C

5.5

16-22

14-18

 SFJH155×2C

5.5

22-30

18-22
